# Parameter List

## ![](https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-b89db1797512caa181bb61f2980881b2150ffdbf%2FIcon_RTL.png?alt=media)

## Abstract

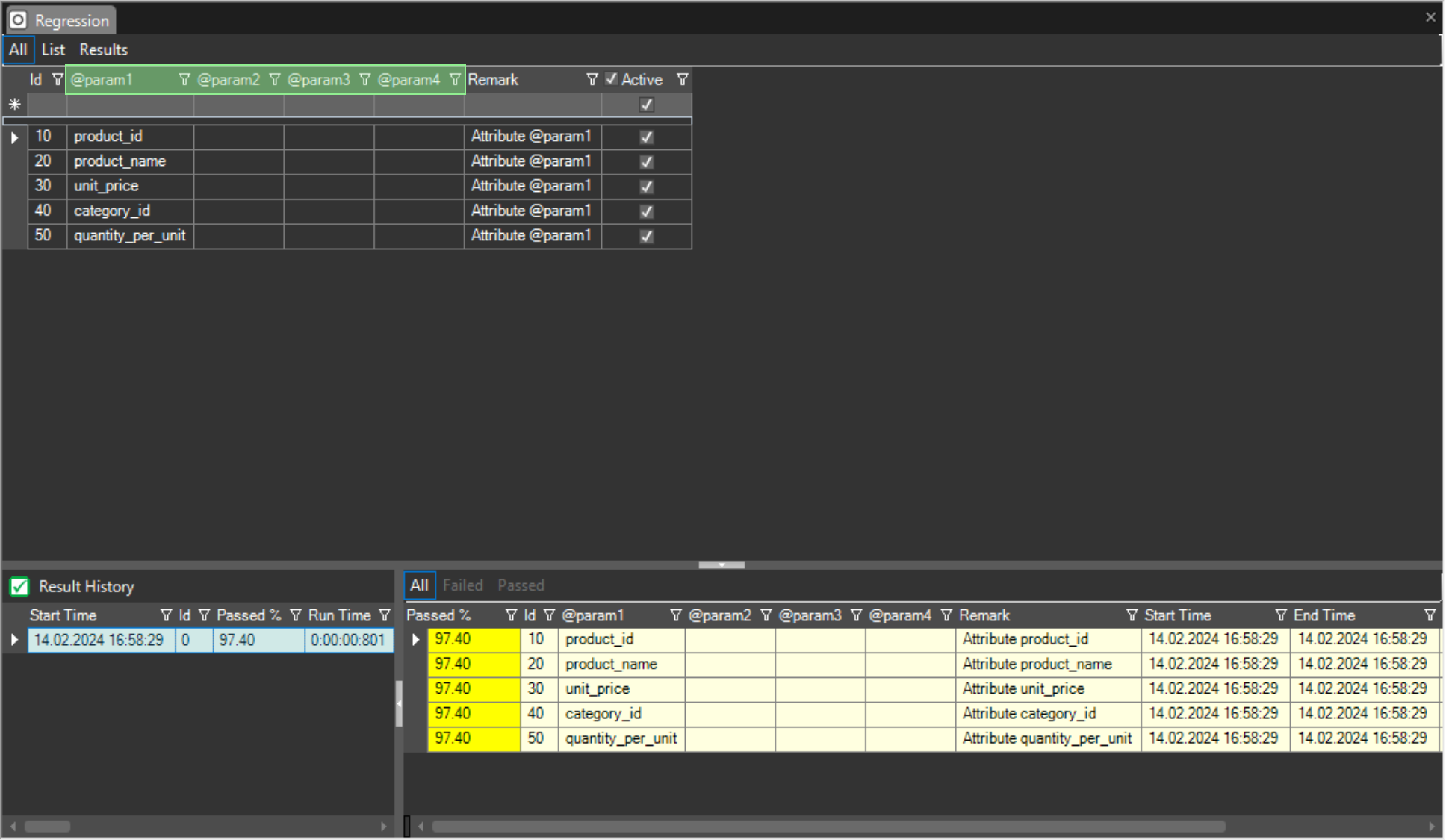

The parameter list contains hard coded values or variables from the environments. The grid can handle nested variables from the parameter list or from the environment definition.

The parameter are used to replace `@param1`, `@param2`, `@param3` and `@param4` within the query A and B (header in green).

Every record of a parameter list does execute the query again by replacing the configured parameters.

The field remark does appear on the OMdashboard as an unique entry. It is recommended to add an appropriate content to it.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-0c772e68a0027f2a3b28899a286374e2245d140b%2FOMrunHelp_ParameterList1.png?alt=media" alt="OMrun parameter list screen" width="80%"><figcaption><p>OMrun parameter list screen</p></figcaption></figure>

***

## New

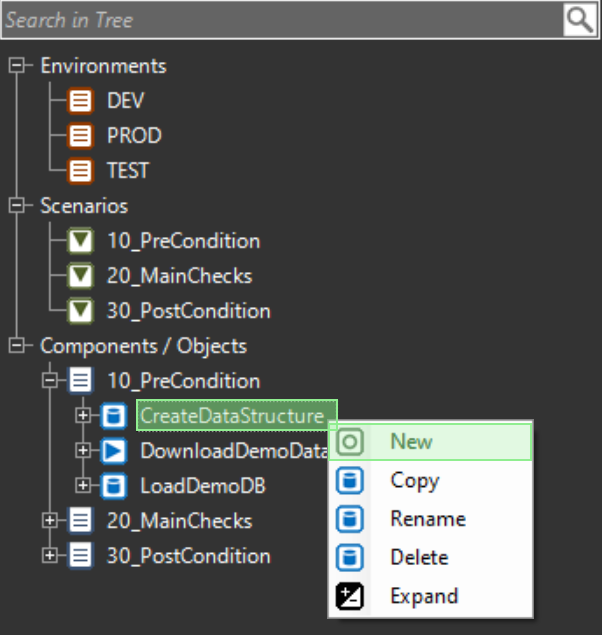

On Navigation Tree at Test Object level click on the right mouse button and select <img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-b89db1797512caa181bb61f2980881b2150ffdbf%2FIcon_RTL.png?alt=media" alt="OMrun Parameter List Icon" data-size="line"> `New`.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-0d102e066d890cdea04f3b35b60624e536247aa7%2FOMrunHelp_ParameterList2.png?alt=media" alt="OMrun test object drop down" width="50%"><figcaption><p>OMrun test object drop down</p></figcaption></figure>

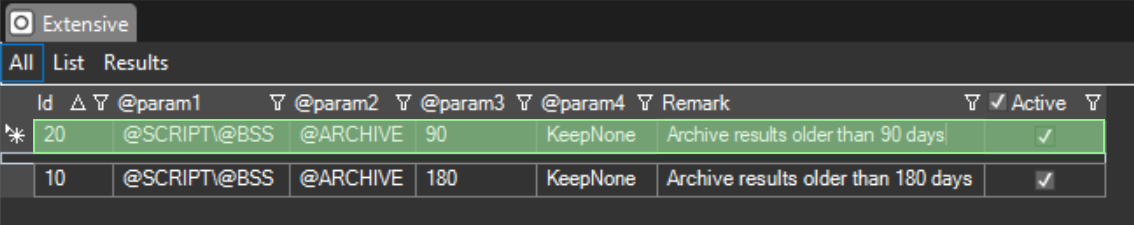

Create a new Runtime List Entry by entering a new sequence number in column "Id" (default suggestion with autoincrease displayed), @param1 - @param4, add a meaningful remark and select checkbox "Active". Row will not execute if checkbox "Active" is not set.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-9227e4127d34c785a92742da2b66fc3403e34cf6%2FOMrunHelp_ParameterList3.png?alt=media" alt="OMrun parameter list detail" width="80%"><figcaption><p>OMrun parameter list detail</p></figcaption></figure>

***

## Copy, Rename, Delete

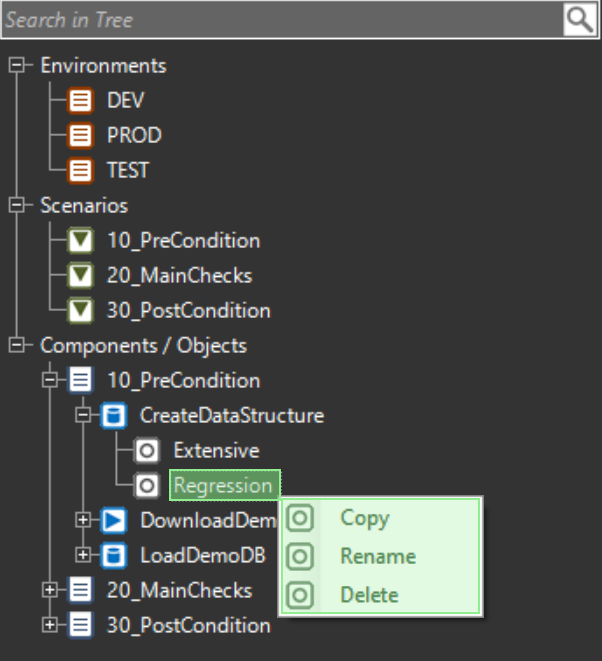

On Navigation Tree at Parameter List level click on the right mouse button and select <img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-b89db1797512caa181bb61f2980881b2150ffdbf%2FIcon_RTL.png?alt=media" alt="OMrun Parameter List Icon" data-size="line"> `Copy`, <img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-b89db1797512caa181bb61f2980881b2150ffdbf%2FIcon_RTL.png?alt=media" alt="OMrun Parameter List Icon" data-size="line"> `Rename` or <img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-b89db1797512caa181bb61f2980881b2150ffdbf%2FIcon_RTL.png?alt=media" alt="OMrun Parameter List Icon" data-size="line"> `Delete`.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-a5bf4d44fb774d057b730092f7ccd84cebf8e86c%2FOMrunHelp_ParameterList4.png?alt=media" alt="OMrun parameter list drop down" width="50%"><figcaption><p>OMrun parameter list drop down</p></figcaption></figure>

> :warning: The parameter list `Extensive` is not allowed to rename or delete as it belongs to the standard setting for each test object.

***

## Parameter List Result

If a parameter list was executed (in this example `Extensive`) the screen shows the [#parameter-results](../../result-analysis/omrun-test-results#parameter-results "mention") below.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-6b1283d3709456450655382f2be27ed6e9b2af0a%2FOMrunHelp_ParameterList5.png?alt=media" alt="OMrun parameter list results" width="80%"><figcaption><p>OMrun parameter list results</p></figcaption></figure>

***

## Navigate to Test Object

### Via Parameter List Row

A double-click onto any value of column `Id` of the parameter lists (in green) opens automatically a new "Tab" with the corresponding "Test Object" and its results.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-d189c093b3fbe297ab9030441f5c2ff717e68024%2FOMrunHelp_ParameterList6.png?alt=media" alt="OMrun parameter list row id" width="80%"><figcaption><p>OMrun parameter list row id</p></figcaption></figure>

***

### Via Parameter List Result

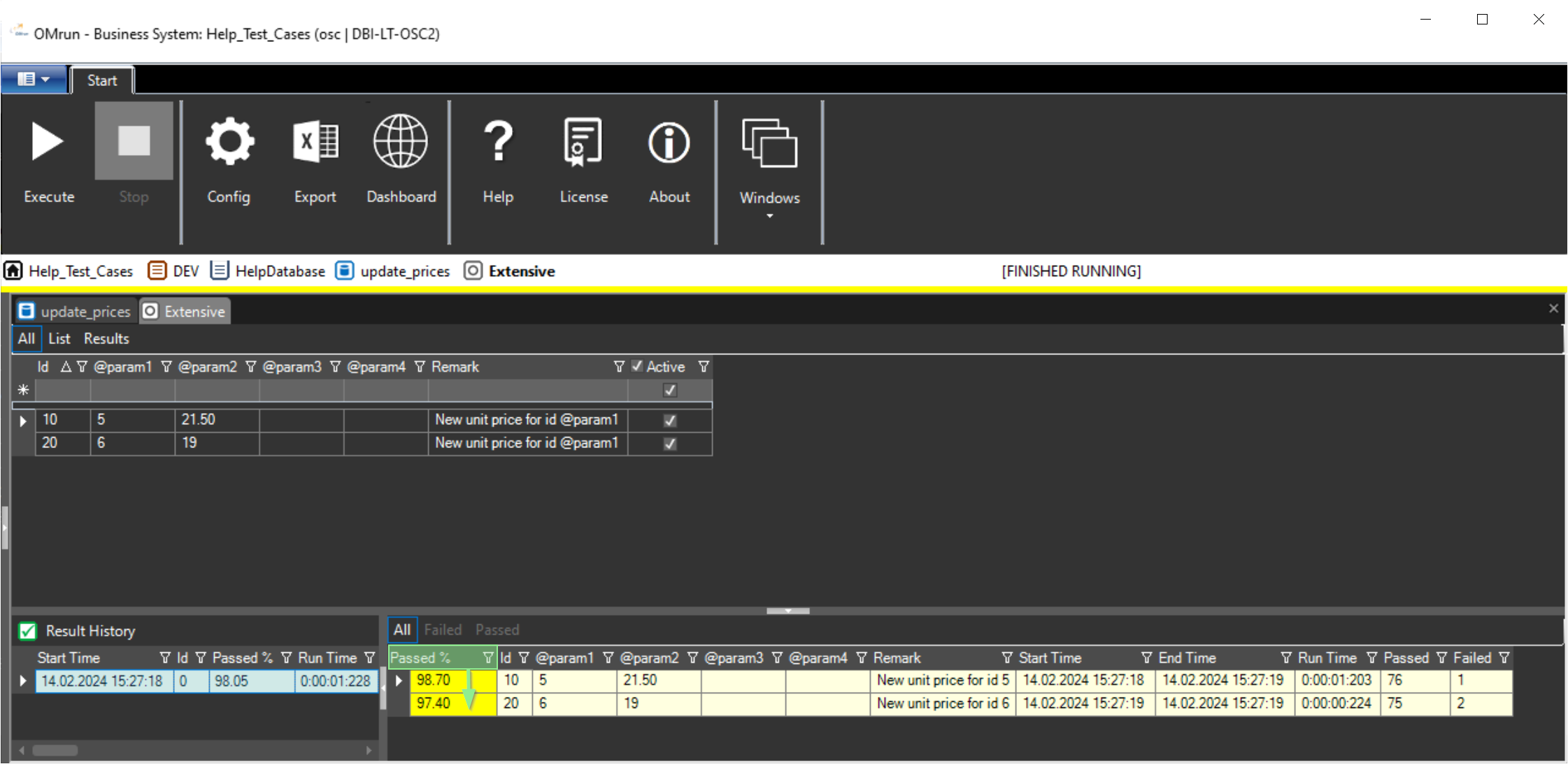

A double-click onto any value of column `Passed %` of the parameter result list (in green) opens automatically a new "Tab" with the corresponding "Test Object" and its results.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-c0e2b2e39d75f665803b2494b40c9af31a4ac8a2%2FOMrunHelp_ParameterList7.png?alt=media" alt="OMrun parameter list result row" width="80%"><figcaption><p>OMrun parameter list result row</p></figcaption></figure>
