# OMdashboard

### Abstract

If an OMdashboard is installed on a IIS Web server, all statistical results defined in the "Dashboard Configuration" are published automatically after every batch run of a test scenario.

There are two update modes available:

* **Overwrite mode**: Deletes actual executed scenario results on dashboard and creates the new structur for the latest run. (Default)
* **Update mode**: Keeps the old results from the last scenario runs visible and updates the executed test objects within the scenario only.

On every dashboard level there are several additional functions available:

* The pie chart represents the summary of all object underlying test results (Success Rate, Runtime etc.)
* Every recorded test object delivers a statistical information with the percentage of succeeded test runs (mouse over shows amount of passed / failed cases)
* Every recorded test object keeps the latest test result of the day archived. The results can be reviewed when clicking on the related histogram of a recorded object.

### Home Level

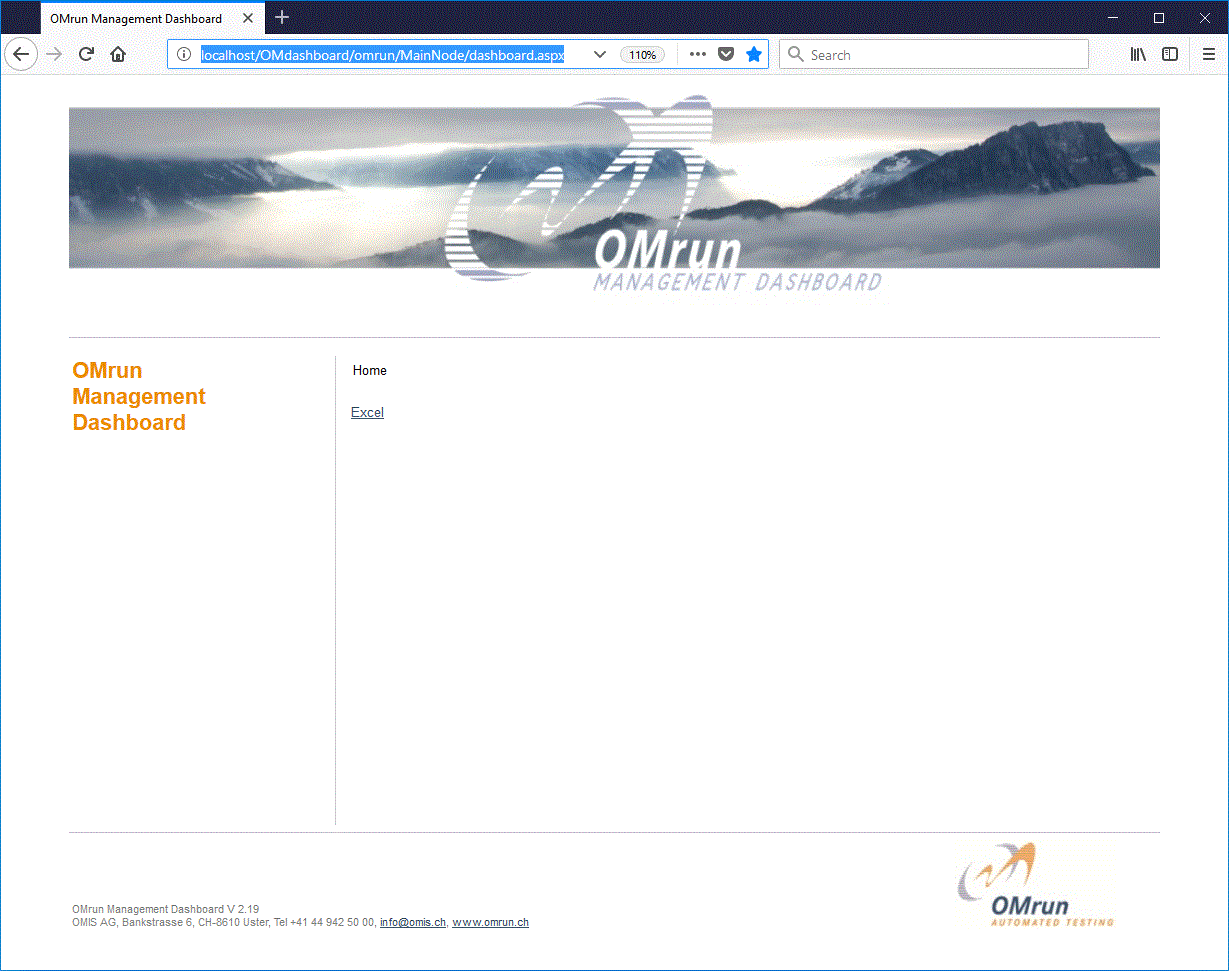

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-8d228cd59c4694859e33d95ccc2fa313a4f2ecfa%2FOMrunHelp_OMdash_Home.gif?alt=media" alt="OMdasboard home screen" width="80%"><figcaption><p>OMdasboard home screen</p></figcaption></figure>

This page is the home page of the OMdashboard. All business systems are listed on this level. The standardard link to this page is: `//<server>/OMdashboard/omrun/MainNode/dashboard.aspx`

***

### Environment Level

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-304a0b5ef6c6381102d98a01b8fc0481d248225d%2FOMrunHelp_OMdash_Environment.gif?alt=media" alt="OMdasboard environment tabs" width="80%"><figcaption><p>OMdasboard environment tabs</p></figcaption></figure>

For every environment there is automatically a separate tab created if the test scenario is executed and the scenario and its respective environment are ticked-on in the dashboard configuration. The system is able to detect test scenario anomalies:

|                                                                                                                          Icon                                                                                                                         | Meaning                                                |
| :---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | ------------------------------------------------------ |
|      ![OMdashboard flash sign](https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-54ef2858721a3f2c73c871d7010c031edaca2cad%2FOMrunHelp_OMdash_Flash.gif?alt=media)      | Infrastructure Issue                                   |
| ![OMdashboard flash sign](https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-ac54163a2bb945aa84bf10acee85b6afd8eed97e%2FOMrunHelp_OMdash_ExclamationSign.gif?alt=media) | A data compare shows status green but contains no data |

***

### Component Level

This level shows all Test Objects listed under the selected Component with their statistical results.

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-1d381ff5dd9635c176e80a588988ba496c67f7af%2FOMrunHelp_OMdash_Component.gif?alt=media" alt="OMdasboard component level" width="80%"><figcaption><p>OMdasboard component level</p></figcaption></figure>

***

### Test Object Level

On the Test Object level, it is possible for authorized users to download the [Excel Result Reports](excel-result-reports) with all detailed attribute differences directly from the dashboard. (click on the Excel symbol at the end of the result list)

<figure><img src="https://1143774439-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1ooXfQ2qWGFRh6lihybt%2Fuploads%2Fgit-blob-fbb20155eb9ca863e4316780a0b1243e7a441e61%2FOMrunHelp_OMdash_TestObject.gif?alt=media" alt="OMdasboard test object level" width="80%"><figcaption><p>OMdasboard test object level</p></figcaption></figure>
